Portable Air Control Module - ACM

• Lightweight, portable control box for surface air supply + communication (if requested) operations.

• If communication is requested, an ALPHA PRO X DIVERS unit is installed into the ACM (underwater units not included) permitting full duplex with max 2 divers. Cables will then run down with surface air supply cables.

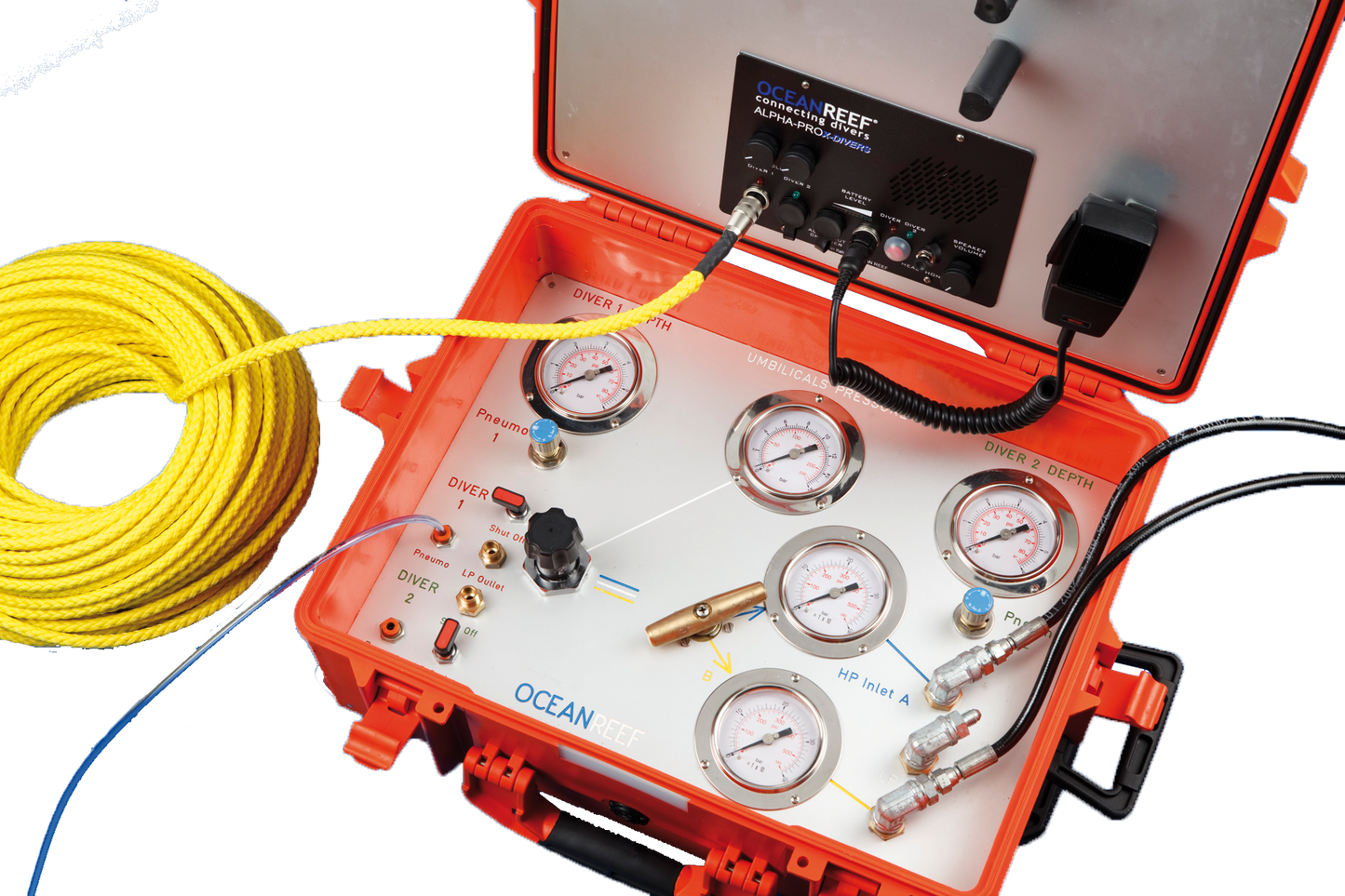

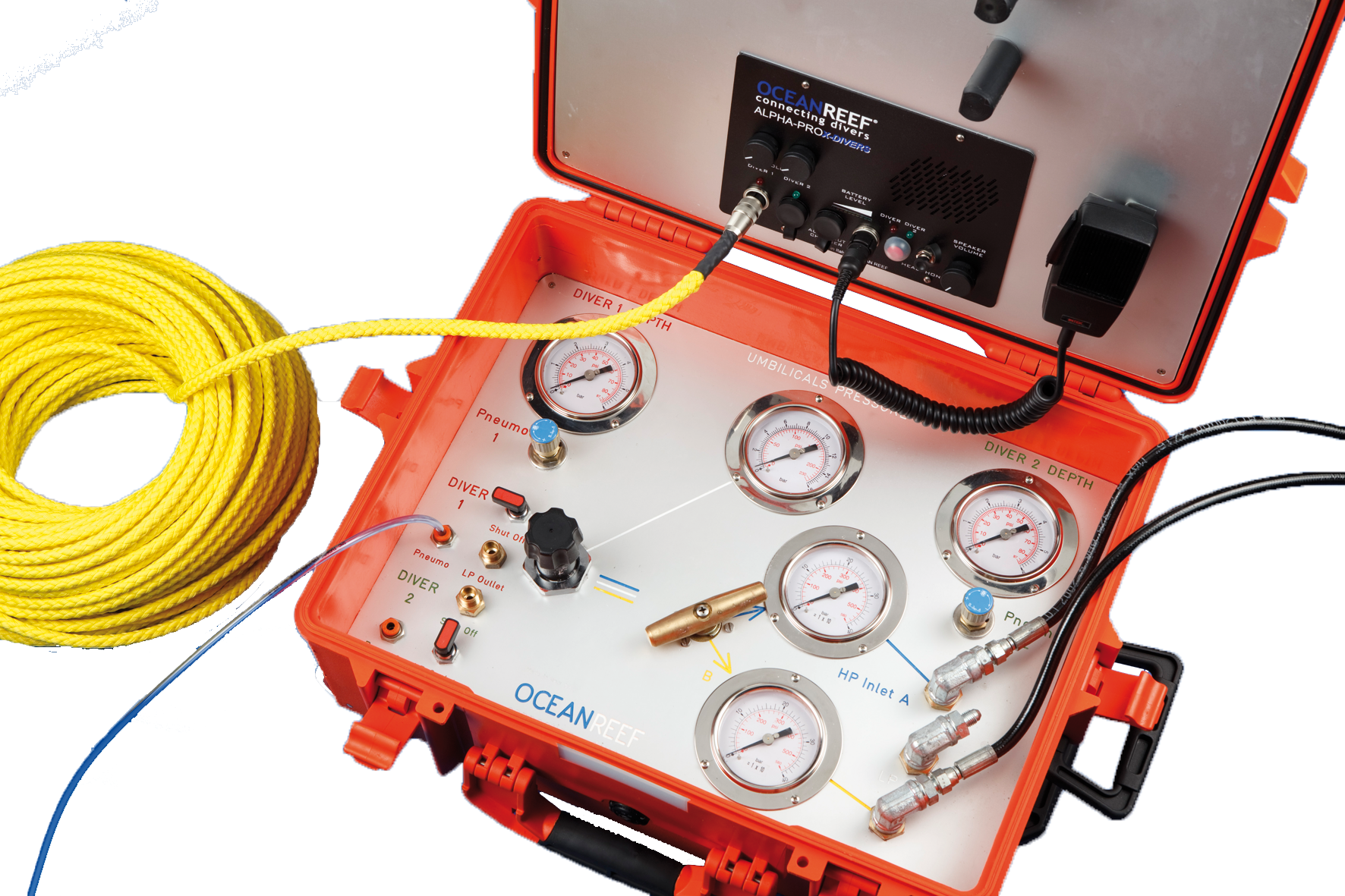

• Depth Gauge/Pneumo Systems: Dual reading gauges continuously monitoring the diver’s depths from 0-40m (0-130ft). Maximum recommended user depth: 40m, 130ft FSW.

• Depth Monitoring/Pneumo Knob is used to meter the flow of air used for depth measurement.

• The Stainless Steel Air Outlets fittings connect the diver’s air supply hose to the ACM, providing a strong, reliable, corrosion resistant connection. Shut-off valves allow the isolation of one diver’s air supply from the other.

• Regulator Adjustment Knob controls the air pressure delivered to the diver’s umbilical. Variable pressure settings are obtainable.

• Selector Valve Handle is used to choose either one of the air supply cylinders. Individual cylinders may be changed out without interrupting the dive.

• High Pressure (HP) Supply Gauges directly monitor the pressure in each of the air supply cylinders.
